KIRA 16 Lines 4D Laser

  • $89.46
    Unit price per
Tax included.


Level green line Self Leveling 360 Horizontal And Vertical Super Powerful Laser level green Beam laser

12/16 LINES LASER

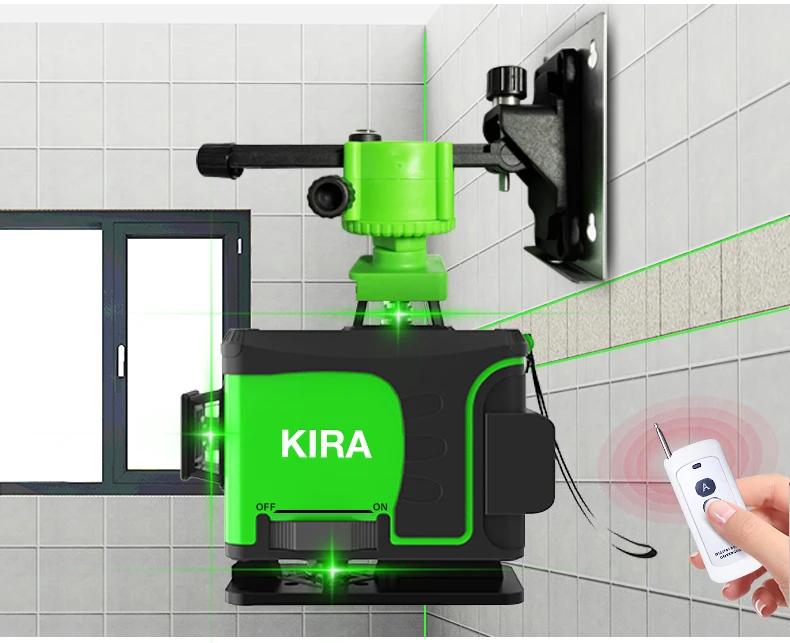

Kira 16 lines 4D Cross Line Laser Level Green Beam Line With Li-ion battery For Tiles Floor Multifunction & Remote Control
High precision/Portable Tool bage/3*360/90°caross/Locked/High Visibility/self leveling/auto off in manual mode

Model:TD1601B-G16/G12
Types:16 Lines/12 Lines
● Laser Beam: Green Beam
● Projection: 12/16 Green Laser Lines
● Product Size:137x82x128mm
● Weight:1.6kg
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: Osram 520nm
● Horizontal / Vertical Accuracy: ±1.5mm/7m
● Leveling / Compensation Range: ±3°
● Leveling Time: ≤4s
● Working Distance: 25m
● Mount Size: 1/4
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃

OPTIONAL CONFIGURATION

① Horizontal Laser Source ② Control Panel
③ Vertical Laser Source ④ Floor Laser Source ⑤ Lithium Battery

① Slash Line Buttom ② Vertical Line Buttom
③ Horizontal Line Buttom

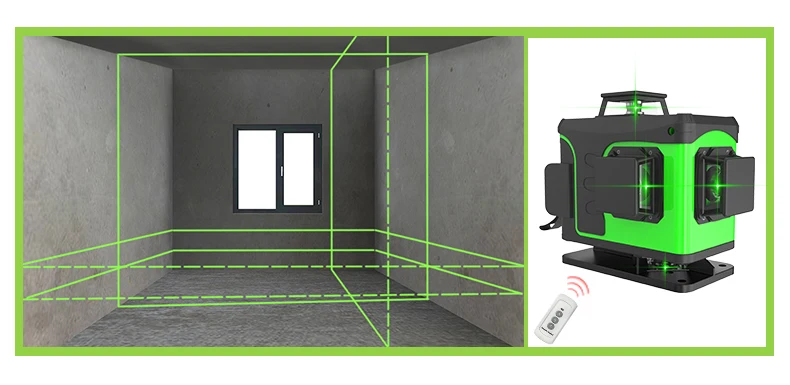

SCHEMATIC DIAGRAM

12 Lines (No remote control)
1 Horizontal Planes
2 Vertical Planes

12 Lines

1 Horizontal Planes
2 Vertical Planes

16 Lines

2 Horizontal Planes
2 Vertical Planes

Automatic Leveling and Alarm

Tilt<3°Automatic Leveling
Tilt≥3°Beep Alarm

Slash Model

① When Switch at OFF. Pressing the ② in 3 Seconds

Dust Proof And Water Proof

Various Kinds of Fixing Method

① 1/4 Threaded Hole ② Bracket ③ Tripod ④ 360° Metal Base

Various Kinds of Fixing Method:

① Strong Magnetic L mount with triop thread can attaches the laser to
any steels easily, turning around 360 degrees as you like.
② It can also accpets a standard tripod screw to do height adjustment.

12 Lines(No remote control)

① 12 Lines Laser Level ② Cloth Bag ③ 360°Metal Base ④ Bracket ⑤ Adapter ⑥ Charger ⑦ Lithium Battery ⑧ Manual

12 Lines

① 12 Lines Laser Level ② Cloth Bag ③ Lift ④ Bracket ⑤ Adapter ⑥ Charger ⑦ Lithium Battery ⑧ Manual ⑨ Remote Control

16 Lines

① 16 Lines Laser Level ② Cloth Bag ③ Lift ④ Bracket ⑤ Adapter ⑥ Charger ⑦ Lithium Battery ⑧ Manual ⑨ Remote Control
